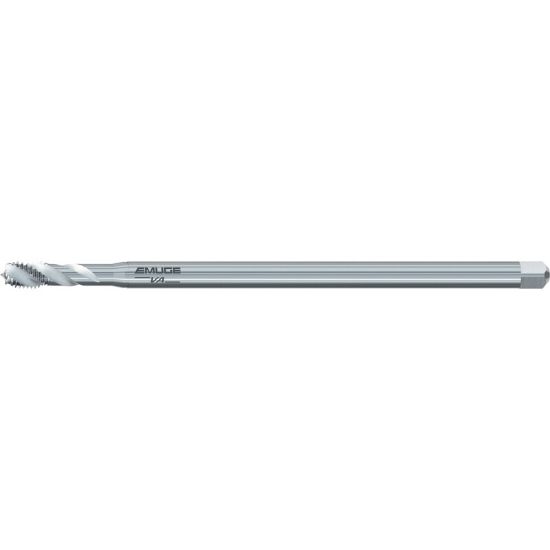

EMUGE B2503000.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN HSSE

ISO: B2503000.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2503000.0050
Delivery date: 3-5 days
$85.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Size M5
Dimension Standard DIN/DIN
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Type Metric
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Pitch 0.80MM
Overall Len 5.5118 140.00MM
Tap Square 0.1520
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
