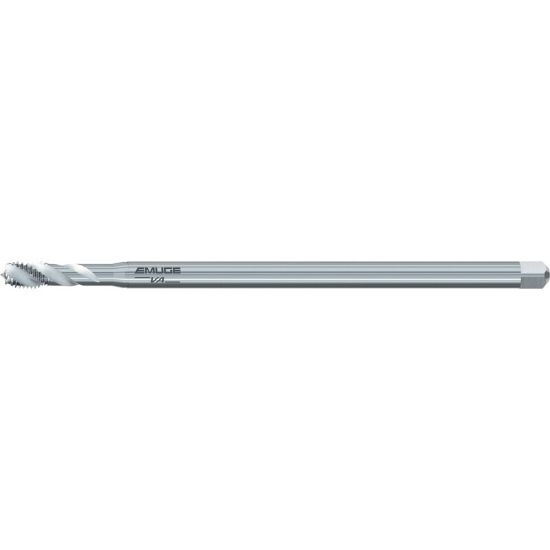

EMUGE B2503000.0030 Tap Mod Bottom M3-0.50MM 6H Metric DIN/DIN HSSE

ISO: B2503000.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2503000.0030
Delivery date: 3-5 days
$77.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 0.50MM
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Shank/Pilot Dia 0.1370 3.48MM
Thread Size M3
Thread Type Metric
Dimension Standard DIN/DIN
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Square 0.1100
Machine Side Connection Type Tap Collet
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
