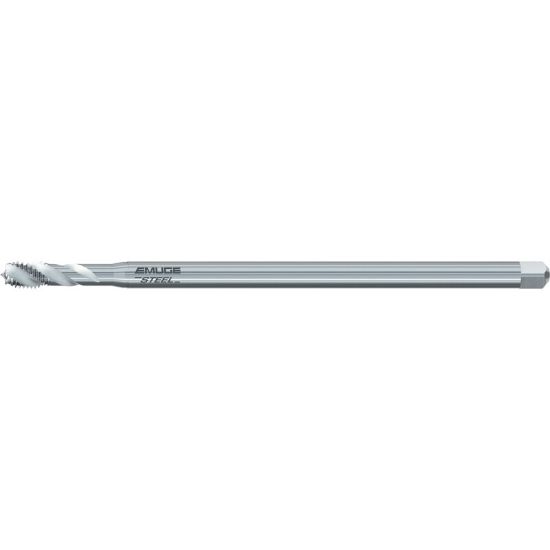

EMUGE B2501000.0030 Tap Mod Bottom M3-0.50MM 6H Metric DIN/DIN HSSE

ISO: B2501000.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2501000.0030
Delivery date: 3-5 days
$79.58

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Overall Len 3.9370 100.00MM
Tap Square 0.1100
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tool Material Steel
Thread Size M3
Shank/Pilot Dia 0.1370 3.48MM
Thread Type Metric
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
