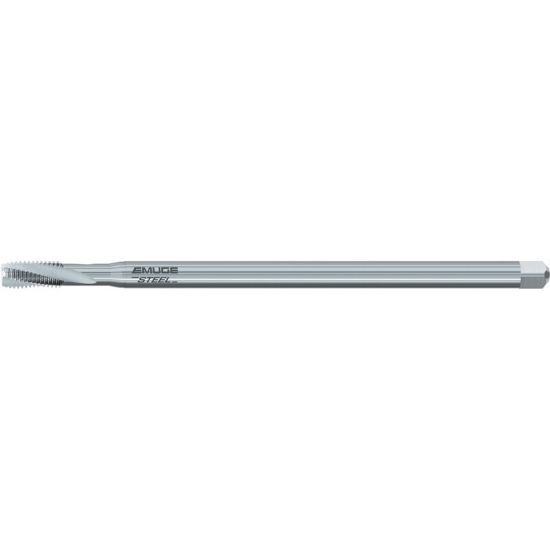

EMUGE B2461000.0050 Tap Bottoming M5-0.80MM 6H Metric DIN/DIN HSSE

ISO: B2461000.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2461000.0050
Delivery date: 3-5 days
$92.10

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard DIN/DIN
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tool Material Steel
Thread Pitch 0.80MM
Machine Side Connection Type Tap Collet
Thread Type Metric
Overall Len 5.5118 140.00MM
Tap Square 0.1520
Thread Size M5
Flute Direction R - Right
Cut Rating <40HRC Steel, Stainless Steel
Tap Type Bottoming
Length Type Long
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
