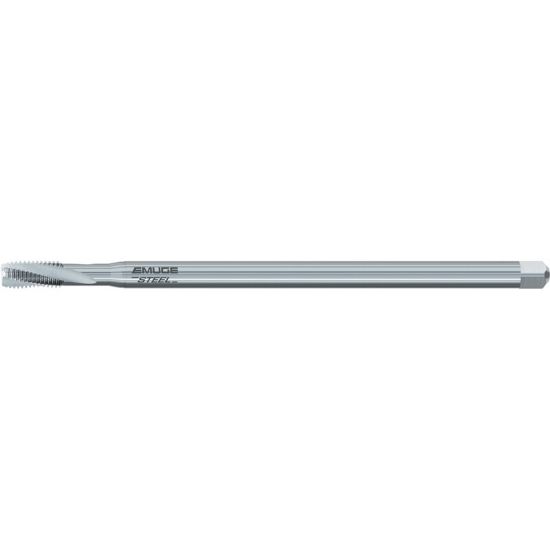

EMUGE B2461000.0040 Tap Bottoming M4-0.70MM 6H Metric DIN/DIN HSSE

ISO: B2461000.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2461000.0040
Delivery date: 3-5 days
$80.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Thread Pitch 0.70MM
Overall Len 4.9213 125.00MM
Dimension Standard DIN/DIN
Thread Type Metric
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Thread Size M4
Flute Direction R - Right
Shank/Pilot Dia 0.1770 4.50MM - #16
Tap Type Bottoming
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Multi Spindle Yes
