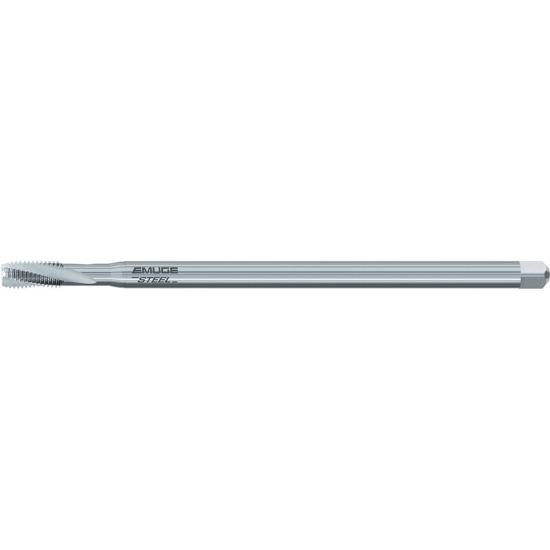

Picture of Emuge B2461000.0080 Tap Bottoming M8-1.25mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge B2461000.0080 Tap Bottoming M8-1.25mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUB2461000.0080 ISO: B2461000.0080
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$133.53
SKU: 1157436

Description

EMUGE B2461000.0080 M8x1.25MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 7.0866 180.00MM
Shank/Pilot Dia 0.3140 7.98MM
Thread Pitch 1.25MM
Thread Size M8
Tap Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Square 0.2380
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
