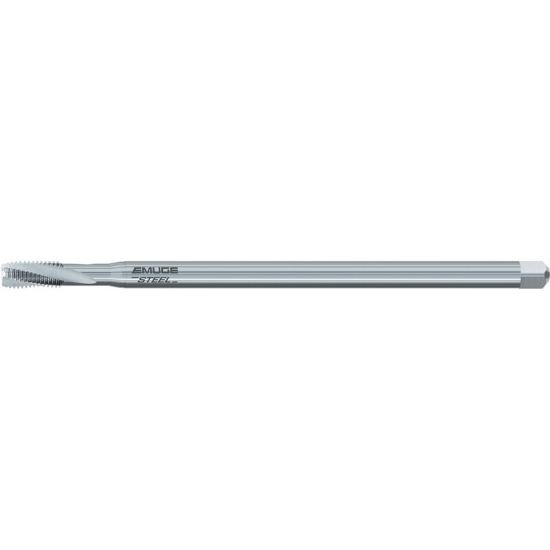

Picture of Emuge B2461000.0030 Tap Bottoming M3-0.50mm 6H Metric DIN/DIn HSSE Pulley Long

Emuge B2461000.0030 Tap Bottoming M3-0.50mm 6H Metric DIN/DIn HSSE Pulley Long

Part Number: EMUB2461000.0030 ISO: B2461000.0030
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$99.44
SKU: 1157432

Description

EMUGE B2461000.0030 M3x0.50MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction RIGHT
Tap Style Cut Spiral Flute
Tap Type Bottoming
Tap Chamfer 1.5P-2.0P
Multi Spindle Yes
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.1370 3.48MM
Thread Pitch 0.50MM
Thread Size M3
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
