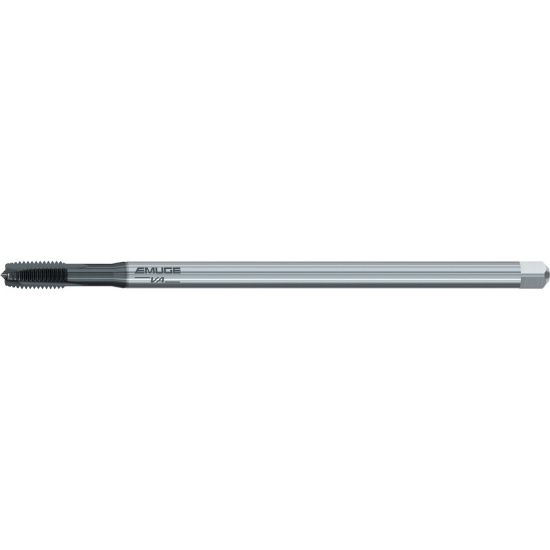

EMUGE B220C300.0060 Tap Plug M6-1.00MM 6H Metric DIN/DIN HSSE GLT-1

ISO: B220C300.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB220C300.0060
Delivery date: 3-5 days
$108.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Plug Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating GLT-1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Thread Size M6
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Overall Len 6.2992 160.00MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Style Cut Spiral Point
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1910
Flute Direction STRAIGHT
Thread Type Metric
Tap Type Plug
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
