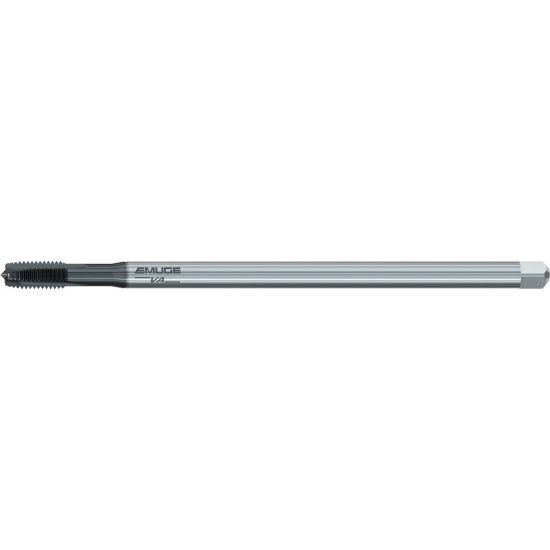

EMUGE B220C300.0050 Tap Plug M5-0.80MM 6H Metric DIN/DIN HSSE GLT-1

ISO: B220C300.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB220C300.0050
Delivery date: 3-5 days
$113.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating GLT-1
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Limit 6H
Length Type Long
Cut Rating <40HRC Steel, Stainless Steel
Thread Type Metric
Overall Len 5.5118 140.00MM
Tap Square 0.1520
Tap Type Plug
Thread Size M5
Thread Pitch 0.80MM
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Tool Material Steel
Tap Chamfer 4P-5P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
