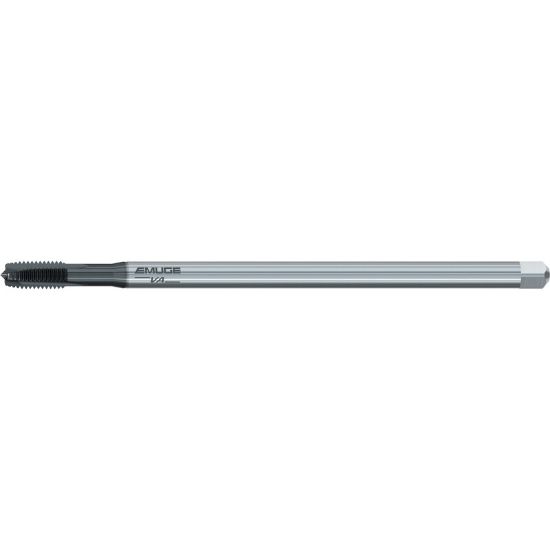

EMUGE B220C300.0040 Tap M4-0.70MM Plug Metric DIN/DIN 4P-5P HSSE GLT-1

ISO: B220C300.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB220C300.0040
Delivery date: 3-5 days
$93.64

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating GLT-1
Made In USA No
Dimensional Specifications
Thread Type Metric
Flute Direction STRAIGHT
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Tap Type Plug
Thread Pitch 0.70MM
Dimension Standard DIN/DIN
Overall Len 4.9213 125.00MM
Flutes/Inserts 3
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Shank/Pilot Dia 0.1770 4.50MM - #16
Length Type Long
Tool Material Steel
Tap Chamfer 4P-5P
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
