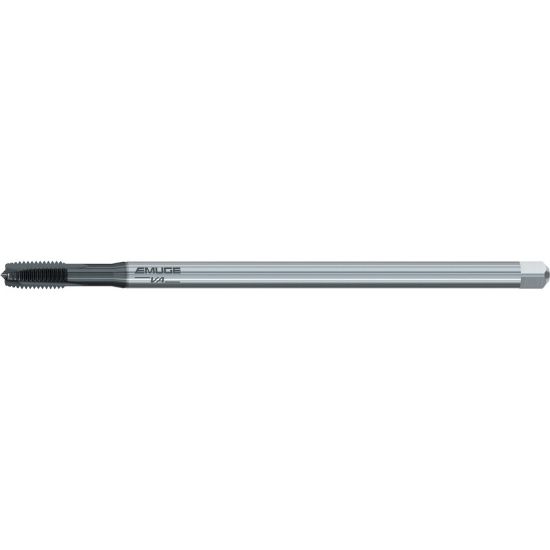

EMUGE B220C300.0030 Tap M3-0.50MM Plug Metric DIN/DIN 4P-5P HSSE GLT-1

ISO: B220C300.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB220C300.0030
Delivery date: 3-5 days
$96.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Made In USA No
Coating GLT-1
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Square 0.1100
Thread Pitch 0.50MM
Flute Direction STRAIGHT
Tap Type Plug
Thread Size M3
Thread Type Metric
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.1370 3.48MM
Flutes/Inserts 3
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
