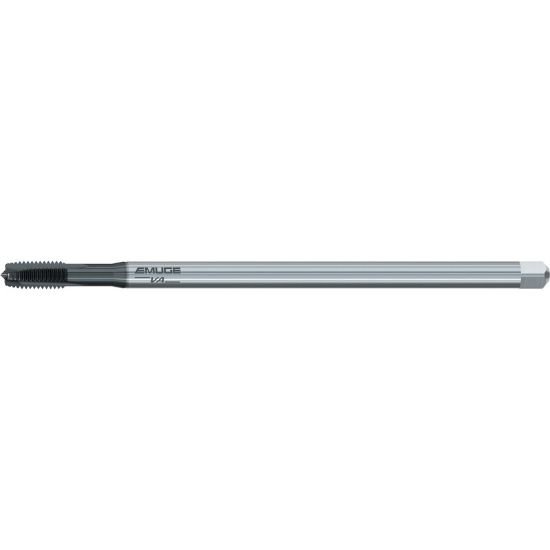

Picture of Emuge B220C300.0050 Tap Plug M5-0.80mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Emuge B220C300.0050 Tap Plug M5-0.80mm 6H Metric DIN/DIn HSSE GLT-1 Pulley Long

Part Number: EMUB220C300.0050 ISO: B220C300.0050
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$132.99
SKU: 1157413

Description

EMUGE B220C300.0050 M5x0.80MM Cut Spiral Point Plug 4P-5P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 5.5118 140.00MM
Shank/Pilot Dia 0.2360 5.99MM
Flutes/Inserts 3
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating GLT-1
Standards & Identification
Dimension Standard DIN/DIN
