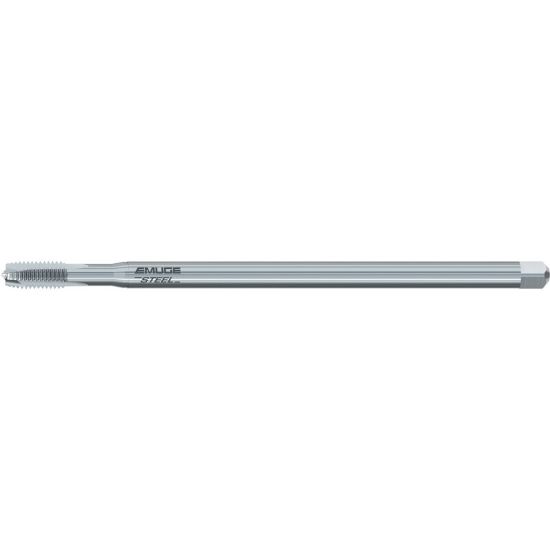

EMUGE B2208900.0080 Tap Plug M8-1.25MM 6H Metric DIN/DIN HSSE

ISO: B2208900.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2208900.0080
Delivery date: 3-5 days
$99.65

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Chamfer 4P-5P
Thread Size M8
Thread Type Metric
Tap Type Plug
Thread Limit 6H
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flute Direction STRAIGHT
Tap Square 0.2380
Thread Pitch 1.25MM
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3140 7.98MM
Overall Len 7.0866 180.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
