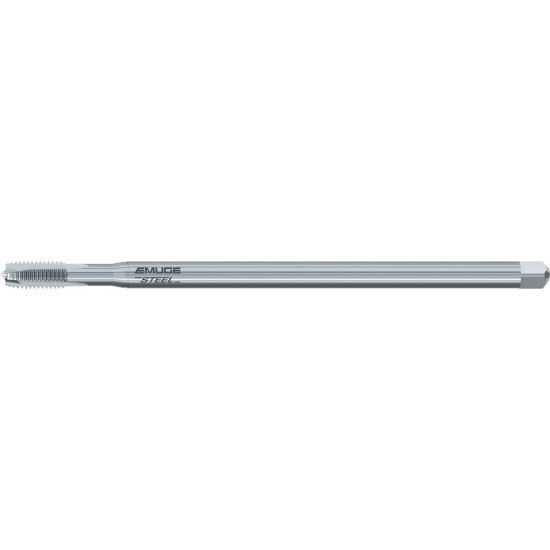

EMUGE B2208900.0060 Tap Plug M6-1.00MM 6H Metric DIN/DIN HSSE

ISO: B2208900.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2208900.0060
Delivery date: 3-5 days
$83.75

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Made In USA No
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Stainless Steel
Tool Material Steel
Tap Chamfer 4P-5P
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Thread Type Metric
Tap Type Plug
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Overall Len 6.2992 160.00MM
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Thread Limit 6H
Length Type Long
Thread Size M6
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
