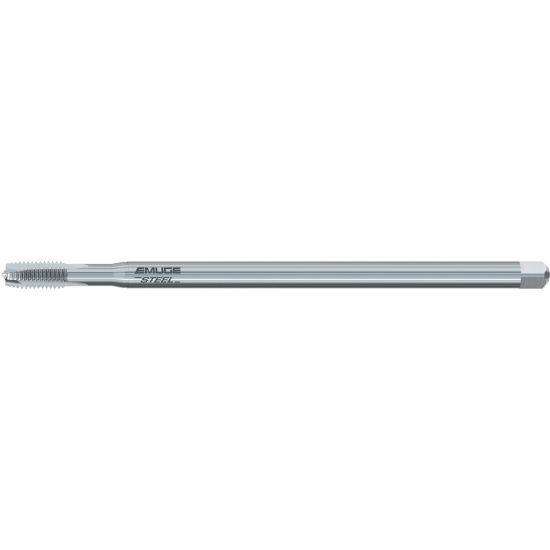

EMUGE B2208900.0050 Tap M5-0.80MM Plug Metric DIN/DIN 4P-5P HSSE

ISO: B2208900.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2208900.0050
Delivery date: 3-5 days
$79.85

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Package Size 1
Made In USA No
Shipping State Massachusetts
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Pitch 0.80MM
Thread Type Metric
Flute Direction STRAIGHT
Overall Len 5.5118 140.00MM
Tap Square 0.1520
Tap Type Plug
Thread Size M5
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Dimension Standard DIN/DIN
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tool Material Steel
Tap Chamfer 4P-5P
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
