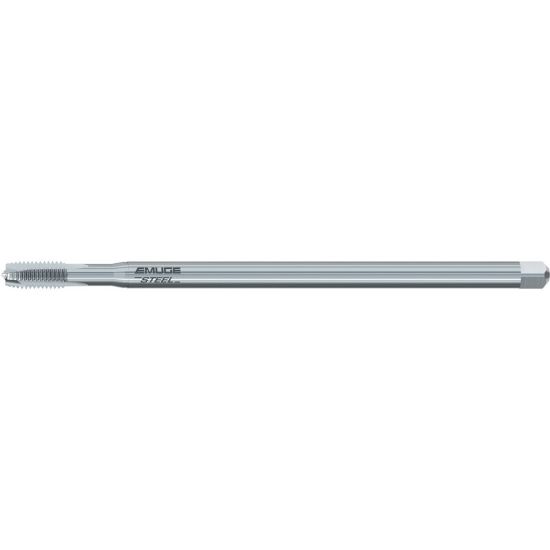

EMUGE B2208900.0030 Tap M3-0.50MM Plug Metric DIN/DIN 4P-5P HSSE

ISO: B2208900.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2208900.0030
Delivery date: 3-5 days
$76.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Through Hole Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Pitch 0.50MM
Flute Direction STRAIGHT
Thread Size M3
Thread Type Metric
Tap Type Plug
Cut Rating <40HRC Steel, Stainless Steel
Length Type Long
Tool Material Steel
Overall Len 3.9370 100.00MM
Tap Square 0.1100
Tap Chamfer 4P-5P
Thread Limit 6H
Machine Side Connection Type Tap Collet
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Style Cut Spiral Point
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.1370 3.48MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
