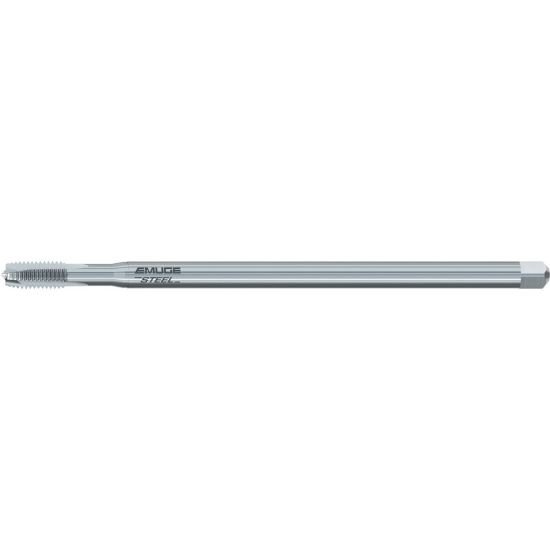

Picture of Emuge B2208900.0050 Tap M5-0.80mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Emuge B2208900.0050 Tap M5-0.80mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Part Number: EMUB2208900.0050 ISO: B2208900.0050
Tool Cross-Reference
Looking for alternatives…
Find a drill for this tap 0 drills
M5 × 0.80MM Cut
% of thread 75%
Target drill —
Drill products available across the % thread range
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band).

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157395
Vendor: Sussex Tool and Supply
$93.91

Description

EMUGE B2208900.0050 M5x0.80MM Cut Spiral Point Plug 4P-5P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 5.5118 140.00MM
Shank/Pilot Dia 0.2360 5.99MM
Thread Pitch 0.80MM
Thread Size M5
Tap Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tap Square 0.1520
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
