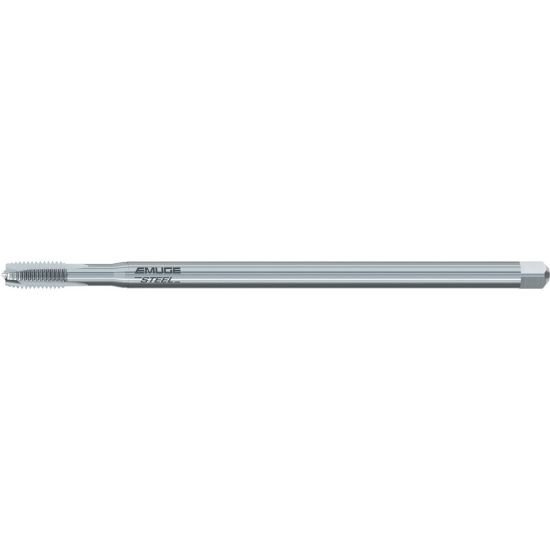

Picture of Emuge B2208900.0040 Tap M4-0.70mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Emuge B2208900.0040 Tap M4-0.70mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Part Number: EMUB2208900.0040 ISO: B2208900.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1157394
Vendor: Sussex Tool and Supply
$75.52
EMUGE B2208900.0040 M4x0.70MM Cut Spiral Point Plug 4P-5P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <40HRC Steel
Overall Length 4.9213 125.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1770 4.50MM - #16
Type Of Tool Tap
Length Type LONG
Performance Rating High Performance
Thread Pitch 0.70MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M4
Thread Limit 6H
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard DIN/DIN
Tap Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Tap Chamfer 4P-5P
