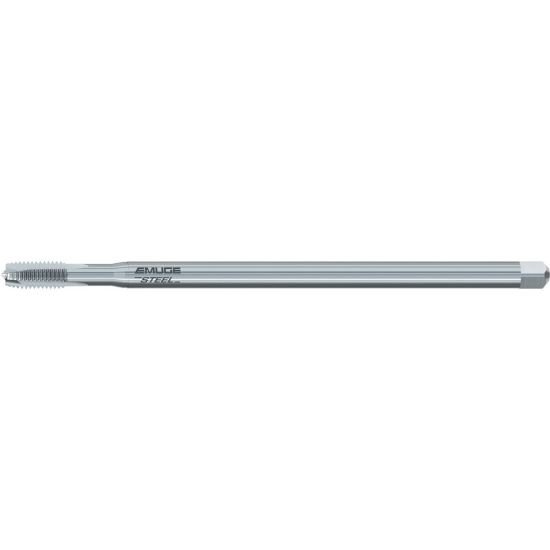

Picture of Emuge B2208900.0030 Tap M3-0.50mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Emuge B2208900.0030 Tap M3-0.50mm Plug Metric DIN/DIn 4P-5P HSSE Pulley Long

Part Number: EMUB2208900.0030 ISO: B2208900.0030
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$90.32
SKU: 1157393

Description

EMUGE B2208900.0030 M3x0.50MM Cut Spiral Point Plug 4P-5P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.1370 3.48MM
Thread Pitch 0.50MM
Thread Size M3
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Stainless Steel, <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Standards & Identification
Dimension Standard DIN/DIN
