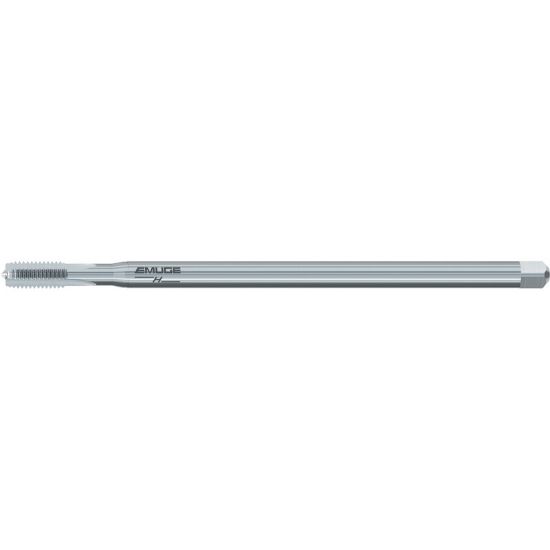

EMUGE B2100501.0030 Tap M3-0.50MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE Nitride

ISO: B2100501.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB2100501.0030
Delivery date: 3-5 days
$78.21

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating Nitride
Dimensional Specifications
Overall Len 3.9370 100.00MM
Tap Square 0.1100
Thread Limit 6H
Length Type Long
Tap Chamfer 2.0P-3.0P
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Machine Side Connection Type Tap Collet
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Thread Size M3
Shank/Pilot Dia 0.1370 3.48MM
Thread Pitch 0.50MM
Flute Direction STRAIGHT
Thread Type Metric
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
