  • EMUGE B196R501.0050 Tap Bottoming M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

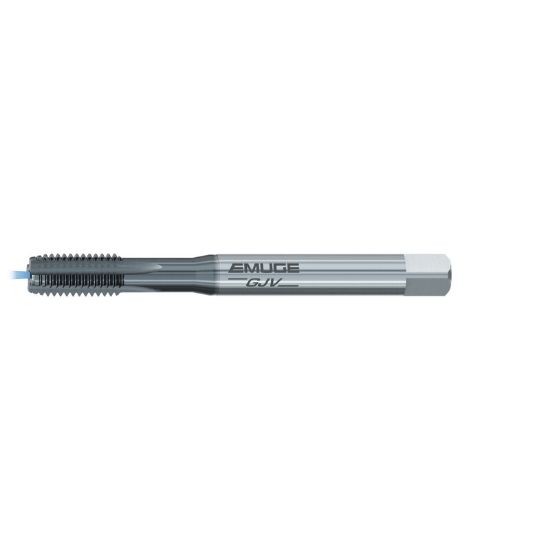

Picture of EMUGE B196R501.0050 Tap Bottoming M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

EMUGE B196R501.0050 Tap Bottoming M5-0.80MM 6H Metric DIN/DIN Coolant HSSE-Powder Metal TiCN

ISO: B196R501.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB196R501.0050
Delivery date: 3-5 days
$90.81

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Bottom Tapping, Cut Tapping, Tapping, Blind Hole Tapping
Performance Rating High Performance
Coating TiCN
Shipping State Massachusetts
Dimensional Specifications
Tool Material Steel
Length Type Standard
Tap Type Bottoming
Thread Limit 6H
Thread Size M5
Thread Type Metric
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Straight Flute
Tap Chamfer 1.5P-2.0P
Thread Pitch 0.80MM
Flute Direction STRAIGHT
Dimension Standard DIN/DIN
Cut Rating Ductile Iron, Gray Iron
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
