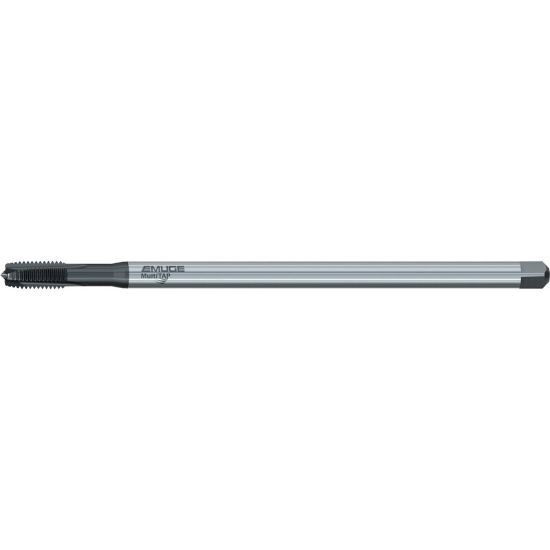

EMUGE B1667300.0080 Tap Plug M8-1.25MM 6H Metric DIN/DIN HSSE Nitride + Steam Oxide

ISO: B1667300.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB1667300.0080
Delivery date: 3-5 days
$130.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Coating Nitride + Steam Oxide
Dimensional Specifications
Tool Material Steel
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Tap Chamfer 4P-5P
Length Type Long
Thread Limit 6H
Dimension Standard DIN/DIN
Thread Size M8
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Flute Direction STRAIGHT
Tap Square 0.2380
Thread Pitch 1.25MM
Shank/Pilot Dia 0.3140 7.98MM
Overall Len 7.0866 180.00MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
