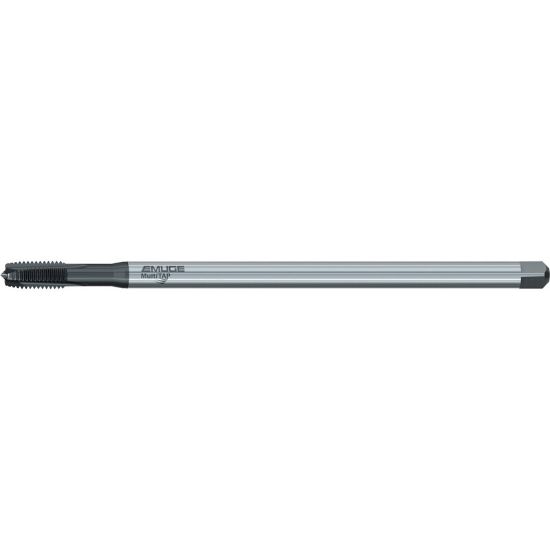

EMUGE B1667300.0050 Tap Plug M5-0.80MM 6H Metric DIN/DIN HSSE Nitride + Steam Oxide

ISO: B1667300.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB1667300.0050
Delivery date: 3-5 days
$83.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Application Plug Tapping, Tapping, Cut Tapping, Through Hole Tapping
Performance Rating High Performance
Coating Nitride + Steam Oxide
Shipping State Massachusetts
Dimensional Specifications
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Thread Limit 6H
Length Type Long
Thread Size M5
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Pitch 0.80MM
Thread Type Metric
Overall Len 5.5118 140.00MM
Tap Square 0.1520
Tap Type Plug
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Tool Material Steel
Tap Chamfer 4P-5P
Shank/Pilot Dia 0.2360 5.99MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
