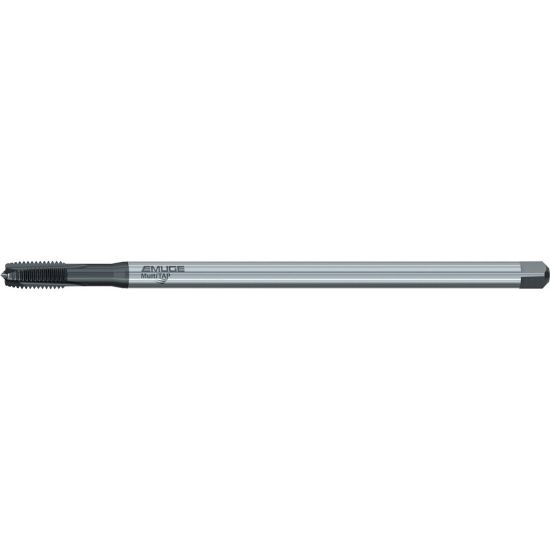

EMUGE B1667300.0040 Tap Plug M4-0.70MM 6H Metric DIN/DIN HSSE Nitride + Steam Oxide

ISO: B1667300.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB1667300.0040
Delivery date: 3-5 days
$70.77

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Coating Nitride + Steam Oxide
Application Through Hole Tapping, Cut Tapping, Tapping, Plug Tapping
Made In USA No
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.1770 4.50MM - #16
Length Type Long
Flute Direction STRAIGHT
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Tap Type Plug
Thread Size M4
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tool Material Steel
Tap Chamfer 4P-5P
Dimension Standard DIN/DIN
Overall Len 4.9213 125.00MM
Flutes/Inserts 3
Thread Pitch 0.70MM
Thread Type Metric
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Stainless Steel
Thread Limit 6H
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
