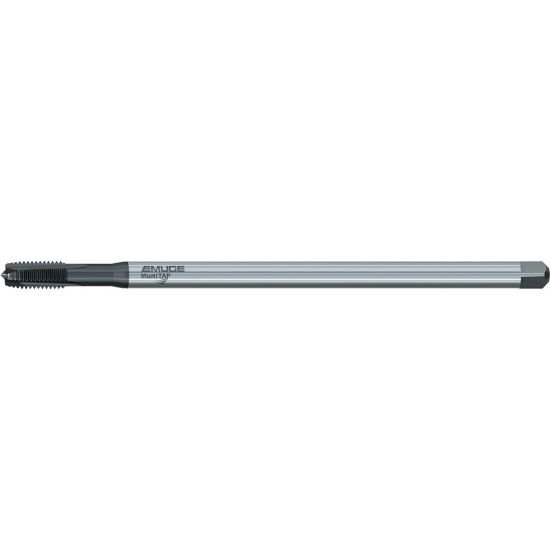

Picture of Emuge B1667300.0030 Tap Plug M3-0.50mm 6H Metric DIN/DIn HSSE Nitride + Steam Oxide Pulley Long

Emuge B1667300.0030 Tap Plug M3-0.50mm 6H Metric DIN/DIn HSSE Nitride + Steam Oxide Pulley Long

Part Number: EMUB1667300.0030 ISO: B1667300.0030
Looking for alternatives…
Find a drill for this tap M3 × 0.50MM
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1157653
Vendor: Sussex Tool and Supply
$87.40

Description

EMUGE B1667300.0030 M3x0.50MM Cut Spiral Point Plug 4P-5P HSSE Nitride + Steam Oxide 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4P-5P
Dimensions & Sizing
Overall Length 3.9370 100.00MM
Shank/Pilot Dia 0.1370 3.48MM
Flutes/Inserts 2
Thread Pitch 0.50MM
Thread Size M3
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1100
Performance & Capacity
Cut Rating Aluminum, Brass, Stainless Steel, <40HRC Steel, Copper
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride + Steam Oxide
Standards & Identification
Dimension Standard DIN/DIN
