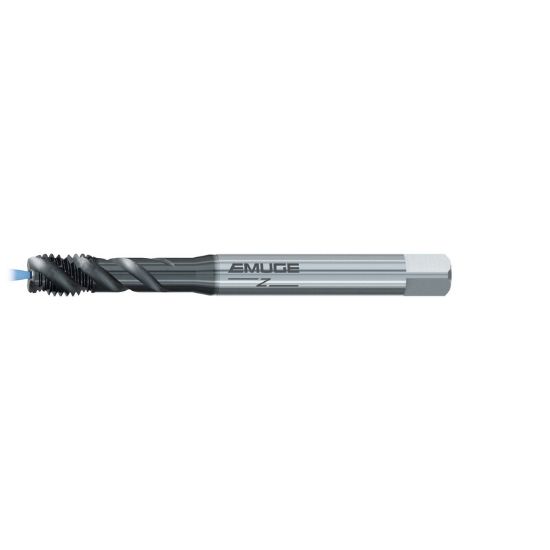

EMUGE B099C400.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN Coolant HSSE GLT-1

ISO: B099C400.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB099C400.0080
Delivery date: 3-5 days
$97.53

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Package Size 1
Shipping State Massachusetts
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating GLT-1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Cut Rating <40HRC Steel, Stainless Steel
Tap Chamfer 2.0P-3.0P
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Type Metric
Machine Side Connection Type Tap Collet
Thread Size M8
Tap Square 0.2380
Thread Pitch 1.25MM
Tool Material Steel
Shank/Pilot Dia 0.3140 7.98MM
Drill Range 0.2638 6.70MM - 0.2768 7.03MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
