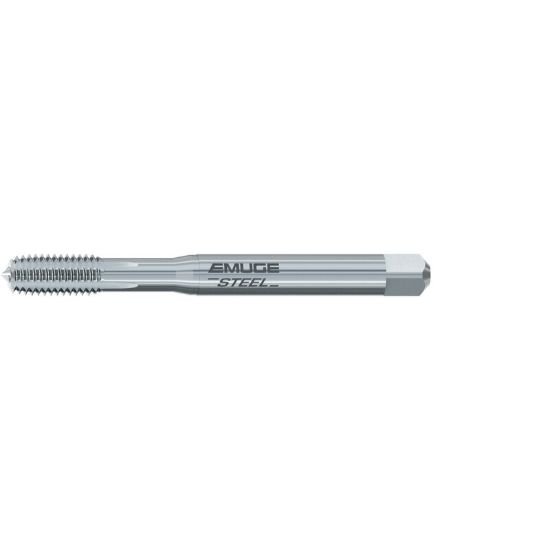

Emuge B0921000.0020 Tap Mod Bottom M2-0.40mm 6H Metric DIN/DIn HSSE Nitride

Part Number: EMUB0921000.0020 ISO: B0921000.0020
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$86.56
SKU: 1156935

Description

EMUGE B0921000.0020 M2x0.40MM Roll Form Mod Bottom 2.0P-3.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction RIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 1.7717 45.00MM
Shank/Pilot Dia 0.1102 2.80MM
Thread Pitch 0.40MM
Thread Size M2
Tap Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Tap Square 0.0820
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating Nitride
Standards & Identification
Dimension Standard DIN/DIN
