  • EMUGE B0911400.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN HSSE TiN

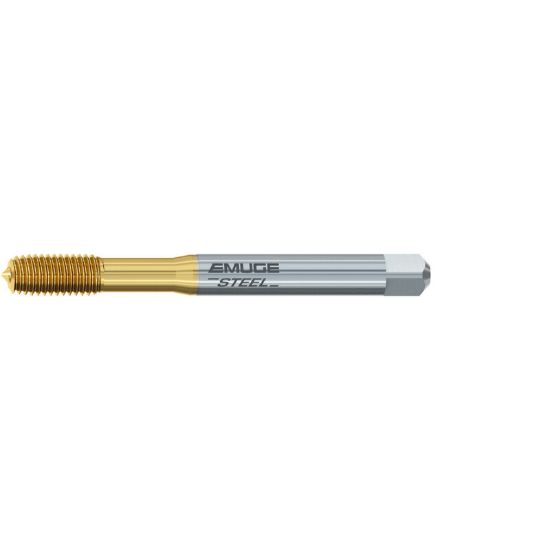

Picture of EMUGE B0911400.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN HSSE TiN

EMUGE B0911400.0276 Tap Mod Bottom M10-1.00MM 6H Metric DIN/DIN HSSE TiN

ISO: B0911400.0276

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911400.0276
Delivery date: 3-5 days
$113.33

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Massachusetts
Package Size 1
Application Tapping, Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping
Performance Rating High Performance
Coating TiN
Dimensional Specifications
Tool Material Steel
Length Type Standard
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Size M10
Shank/Pilot Dia 0.3930 9.98MM
Thread Type Metric
Thread Pitch 1.00MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction STRAIGHT
Drill Range 0.3736 9.49MM - 0.3791 9.63MM
Tap Square 0.3140
Dimension Standard DIN/DIN
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
