  • EMUGE B0911400.0229 Tap Mod Bottom M6-0.75MM 6H Metric DIN/DIN HSSE TiN

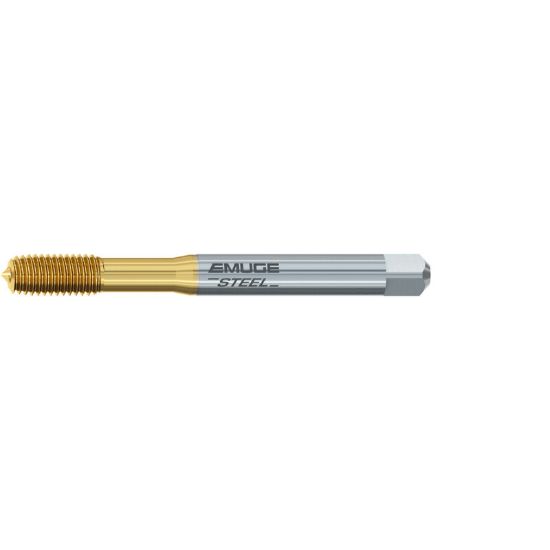

Picture of EMUGE B0911400.0229 Tap Mod Bottom M6-0.75MM 6H Metric DIN/DIN HSSE TiN

EMUGE B0911400.0229 Tap Mod Bottom M6-0.75MM 6H Metric DIN/DIN HSSE TiN

ISO: B0911400.0229

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911400.0229
Delivery date: 3-5 days
$108.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Tap Square 0.1920
Length Type Standard
Tap Style Roll Form
Flute Direction STRAIGHT
Overall Len 3.1496 80.00MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M6
Drill Range 0.2220 5.64MM - 0.2242 5.69MM
Thread Pitch 0.75MM
Tool Material Steel
Dimension Standard DIN/DIN
Thread Type Metric
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
