  • EMUGE B0911400.0210 Tap Mod Bottom M4-0.50MM 6H Metric DIN/DIN HSSE TiN

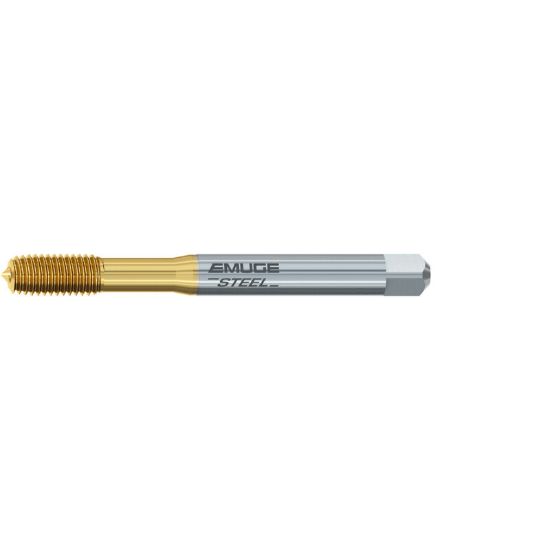

Picture of EMUGE B0911400.0210 Tap Mod Bottom M4-0.50MM 6H Metric DIN/DIN HSSE TiN

EMUGE B0911400.0210 Tap Mod Bottom M4-0.50MM 6H Metric DIN/DIN HSSE TiN

ISO: B0911400.0210

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911400.0210
Delivery date: 3-5 days
$120.94

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Thread Type Metric
Overall Len 2.4803 63.00MM
Thread Size M4
Thread Pitch 0.50MM
Flute Direction STRAIGHT
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Tap Square 0.1330
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tool Material Steel
Drill Range 0.1480 3.76MM - 0.1492 3.79MM
Thread Limit 6H
Shank/Pilot Dia 0.1770 4.50MM - #16
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
