  • EMUGE B0911400.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE TiN

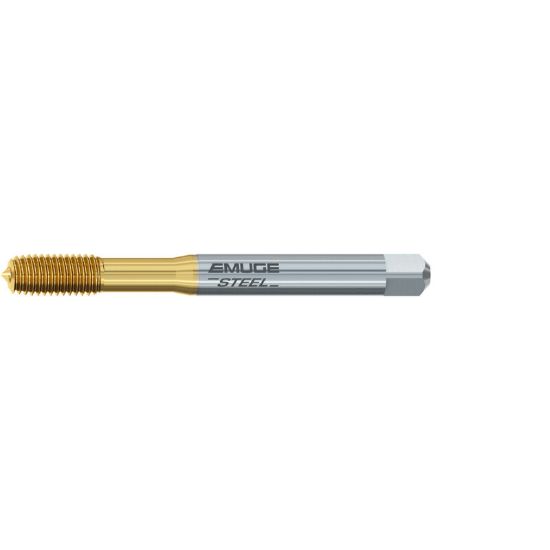

Picture of EMUGE B0911400.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE TiN

EMUGE B0911400.0100 Tap Mod Bottom M10-1.50MM 6H Metric DIN/DIN HSSE TiN

ISO: B0911400.0100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911400.0100
Delivery date: 3-5 days
$70.65

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Coating TiN
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Drill Range 0.3638 9.24MM - 0.3717 9.44MM
Tap Square 0.2860
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Thread Pitch 1.50MM
Overall Len 3.9370 100.00MM
Length Type Standard
Flute Direction STRAIGHT
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M10
Thread Type Metric
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3930 9.98MM
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
