  • EMUGE B0911400.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE TiN

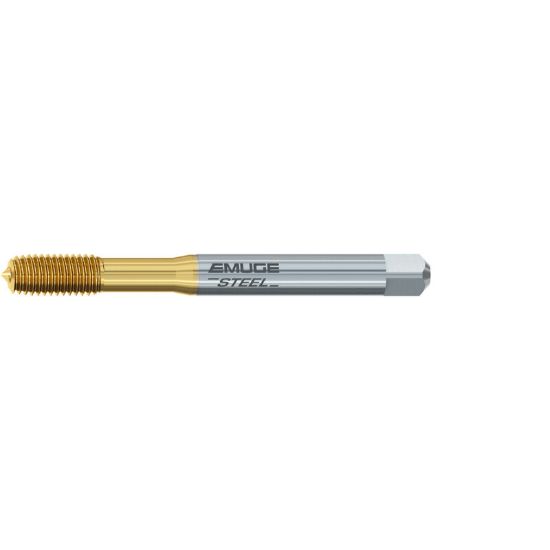

Picture of EMUGE B0911400.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE TiN

EMUGE B0911400.0080 Tap Mod Bottom M8-1.25MM 6H Metric DIN/DIN HSSE TiN

ISO: B0911400.0080

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911400.0080
Delivery date: 3-5 days
$63.03

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Drill Range 0.2898 7.36MM - 0.2965 7.53MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Overall Len 3.5433 90.00MM
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Thread Pitch 1.25MM
Shank/Pilot Dia 0.3140 7.98MM
Tap Square 0.2440
Thread Size M8
Thread Type Metric
Flute Direction STRAIGHT
Length Type Standard
Tap Style Roll Form
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
