  • EMUGE B0911400.0025 Tap M2.5-0.45MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE TiN

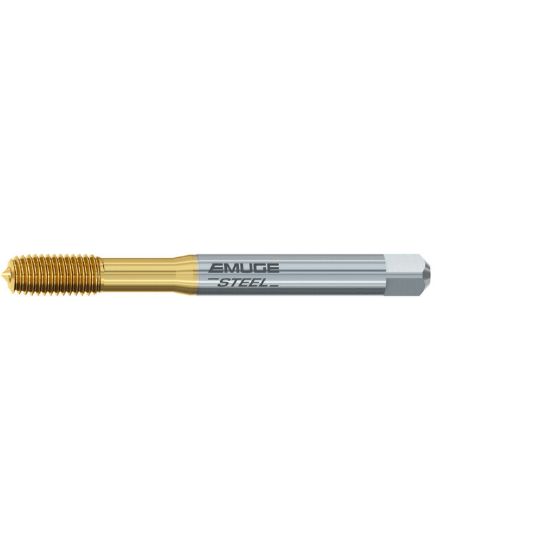

Picture of EMUGE B0911400.0025 Tap M2.5-0.45MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE TiN

EMUGE B0911400.0025 Tap M2.5-0.45MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE TiN

ISO: B0911400.0025

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911400.0025
Delivery date: 3-5 days
$71.18

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Tapping, Roll Form Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Type Metric
Overall Len 1.9685 50.00MM
Drill Range 0.0894 2.27MM - 0.0917 2.33MM
Dimension Standard DIN/DIN
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1102 2.80MM
Tap Square 0.0820
Tap Type Mod Bottom
Thread Pitch 0.45MM
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Tool Material Steel
Length Type Standard
Thread Size M2.5
Flute Direction STRAIGHT
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
