  • EMUGE B0911400.0020 Tap M2-0.40MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE TiN

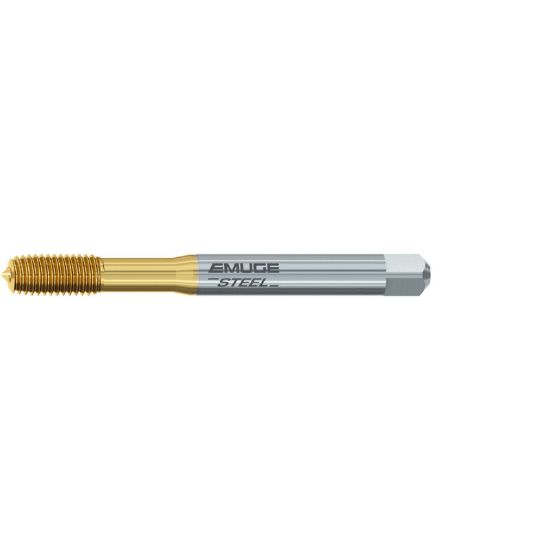

Picture of EMUGE B0911400.0020 Tap M2-0.40MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE TiN

EMUGE B0911400.0020 Tap M2-0.40MM Mod Bottom Metric DIN/DIN 2.0P-3.0P HSSE TiN

ISO: B0911400.0020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911400.0020
Delivery date: 3-5 days
$74.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Coating TiN
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, Tapping, Roll Form Tapping
Performance Rating High Performance
Dimensional Specifications
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.1102 2.80MM
Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Tap Type Mod Bottom
Thread Limit 6H
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Length Type Standard
Thread Pitch 0.40MM
Thread Type Metric
Thread Size M2
Tool Material Steel
Dimension Standard DIN/DIN
Flute Direction STRAIGHT
Overall Len 1.7717 45.00MM
Tap Square 0.0820
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
