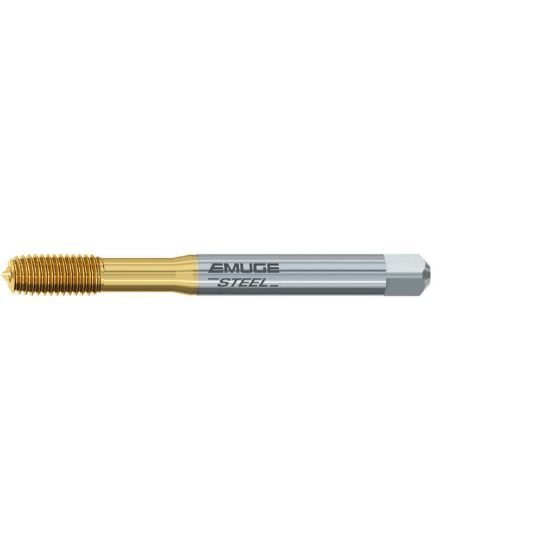

Picture of Emuge B0911400.0025 Tap M2.5-0.45mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE TiN

Emuge B0911400.0025 Tap M2.5-0.45mm Mod Bottom Metric DIN/DIn 2.0P-3.0P HSSE TiN

Part Number: EMUB0911400.0025 ISO: B0911400.0025
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$83.72
SKU: 1156949

Description

EMUGE B0911400.0025 M2.5x0.45MM Roll Form Mod Bottom 2.0P-3.0P HSSE TiN 6H Metric Steel Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type METRIC
Flute Direction STRAIGHT
Tap Style Roll Form
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Dimensions & Sizing
Overall Length 1.9685 50.00MM
Shank/Pilot Dia 0.1102 2.80MM
Thread Pitch 0.45MM
Thread Size M2.5
Tap Drill Range 0.0894 2.27MM - 0.0917 2.33MM
Tap Square 0.0820
Performance & Capacity
Cut Rating <40HRC Steel
Performance Rating High Performance
Tolerances & Accuracy
Thread Limit 6H
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSSE
Coating TIN
Standards & Identification
Dimension Standard DIN/DIN
