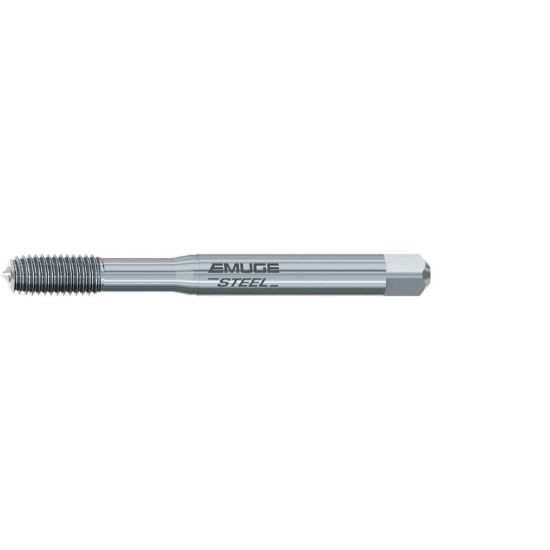

EMUGE B0911000.0035 Tap Mod Bottom M3.5-0.60MM 6H Metric DIN/DIN HSSE Nitride

ISO: B0911000.0035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911000.0035
Delivery date: 3-5 days
$64.42

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating Nitride
Application Blind Hole Tapping, Mod Bottom Tapping, Roll Form Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Thread Size M3.5
Thread Type Metric
Shank/Pilot Dia 0.1570 3.99MM - #22
Tool Material Steel
Drill Range 0.1264 3.21MM - 0.1280 3.25MM
Thread Pitch 0.60MM
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction STRAIGHT
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Length Type Standard
Tap Style Roll Form
Dimension Standard DIN/DIN
Overall Len 2.2047 56.00MM
Tap Square 0.1180
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
