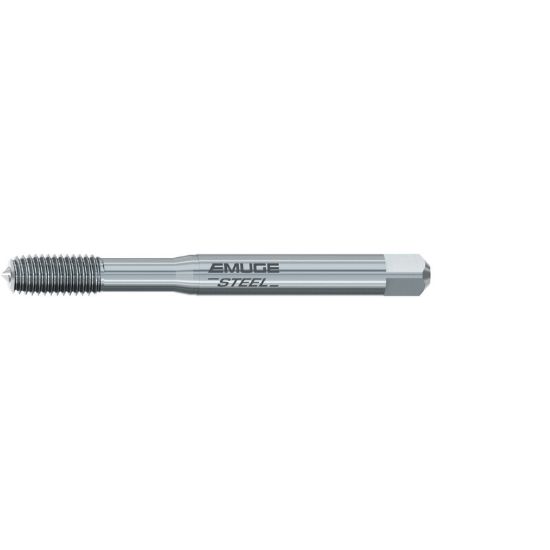

EMUGE B0911000.0030 Tap Mod Bottom M3-0.50MM 6H Metric DIN/DIN HSSE Nitride

ISO: B0911000.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911000.0030
Delivery date: 3-5 days
$49.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Blind Hole Tapping, Roll Form Tapping, Tapping
Made In USA No
Coating Nitride
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel
Machine Side Connection Type Tap Collet
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1060
Tap Type Mod Bottom
Thread Pitch 0.50MM
Flute Direction STRAIGHT
Thread Size M3
Thread Type Metric
Length Type Standard
Tap Style Roll Form
Tool Material Steel
Shank/Pilot Dia 0.1370 3.48MM
Dimension Standard DIN/DIN
Overall Len 2.2047 56.00MM
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
