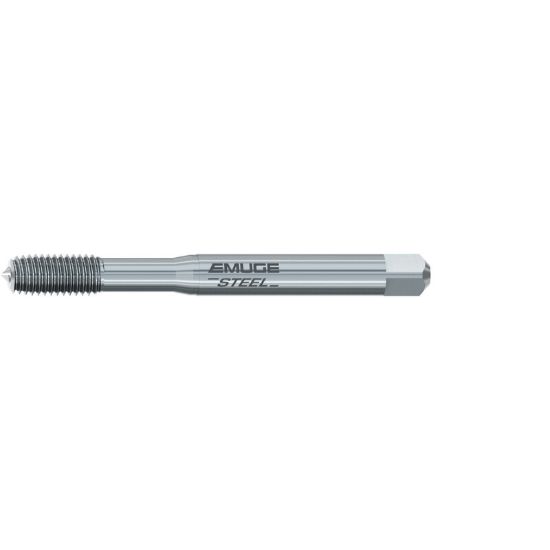

EMUGE B0911000.0020 Tap Mod Bottom M2-0.40MM 6H Metric DIN/DIN HSSE Nitride

ISO: B0911000.0020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0911000.0020
Delivery date: 3-5 days
$69.48

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

iquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Made In USA No
Coating Nitride
Package Size 1
Shipping State Massachusetts
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Machine Side Connection Type Tap Collet
Tap Square 0.0820
Thread Pitch 0.40MM
Thread Type Metric
Flute Direction STRAIGHT
Overall Len 1.7717 45.00MM
Length Type Standard
Thread Size M2
Tool Material Steel
Tap Style Roll Form
Tap Chamfer 2.0P-3.0P
Thread Limit 6H
Cut Rating <40HRC Steel
Shank/Pilot Dia 0.1102 2.80MM
Drill Range 0.0709 1.80MM - 0.0728 1.85MM
Tap Type Mod Bottom
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
