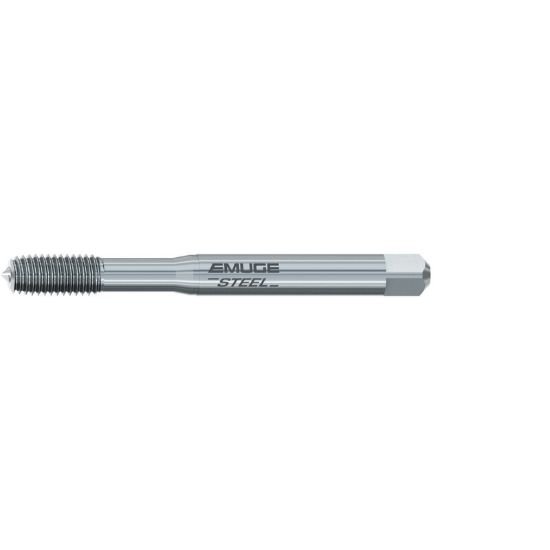

Emuge B0911000.0030 Tap Mod Bottom M3-0.50mm 6H Metric DIN/DIn HSSE Nitride

Part Number: EMUB0911000.0030 ISO: B0911000.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156928
$50.43
EMUGE B0911000.0030 M3x0.50MM Roll Form Mod Bottom 2.0P-3.0P HSSE Nitride 6H Metric Steel Liquid nitriding is a surface enhancement process with one of the longest track records of success of any ‘case hardening’ technology. It is widely used to cost effectively enhance the wear and corrosion resistance of plain carbon steels, low alloy steels, and stainless steels for a diverse range of precision components and industries, including automotive; oil & gas; hydraulic and pneumatic machinery; firearms; metal forming and forging tools; construction, transportation and material handling equipment, and general purpose industrial machinery.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <40HRC Steel
Coating Nitride
Overall Length 2.2047 56.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1370 3.48MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.50MM
Thread Type METRIC
Flute Direction STRAIGHT
Thread Size M3
Thread Limit 6H
Tap Style Roll Form
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Square 0.1060
Tap Chamfer 2.0P-3.0P
