  • EMUGE B051C400.0973 Tap M8-1.25MM Bottoming STI-M DIN/DIN 1.5P-2.0P Cobalt HSSE GLT-1

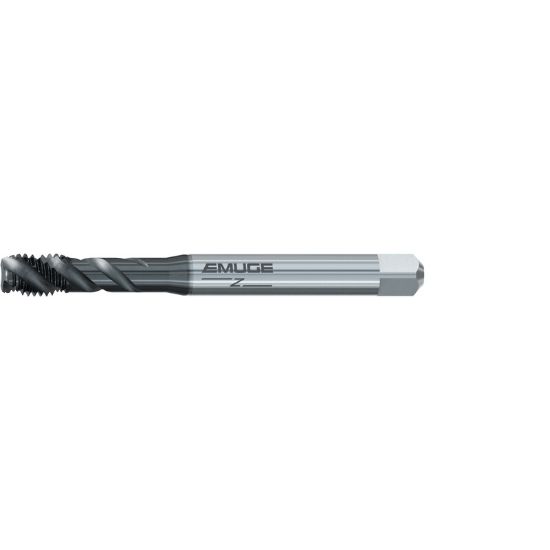

Picture of EMUGE B051C400.0973 Tap M8-1.25MM Bottoming STI-M DIN/DIN 1.5P-2.0P Cobalt HSSE GLT-1

EMUGE B051C400.0973 Tap M8-1.25MM Bottoming STI-M DIN/DIN 1.5P-2.0P Cobalt HSSE GLT-1

ISO: B051C400.0973

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB051C400.0973
Delivery date: 3-5 days
$83.35

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Tapping, STI Thread Insert Tapping
Coating GLT-1
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Thread Size M8
Thread Pitch 1.25MM
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.3930 9.98MM
Flutes/Inserts 3
Drill Range 0.3307 8.40MM
Thread Limit 6H
Tap Square 0.2860
Tap Chamfer 1.5P-2.0P
Machine Side Connection Type Tap Collet
Thread Type STI-M
Flute Direction R - Right
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Tap Type Bottoming
Tap Style STI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
