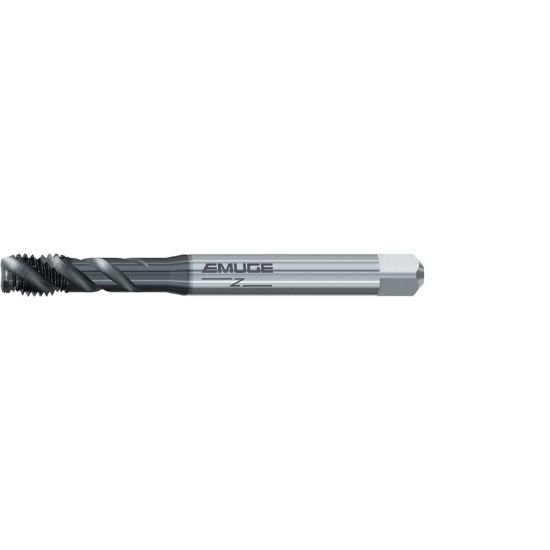

Picture of Emuge B051C400.0060 Tap M6-1.00mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE GLT-1

Emuge B051C400.0060 Tap M6-1.00mm Bottoming Metric DIN/DIn 1.5P-2.0P HSSE GLT-1

Part Number: EMUB051C400.0060 ISO: B051C400.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1156504
Vendor: Sussex Tool and Supply
$61.44
EMUGE B051C400.0060 M6x1.00MM Cut Spiral Flute Bottoming 1.5P-2.0P HSSE GLT-1 6H Metric Steel GLT-1 - Hard surface coating with anti-friction layer In a PVD process (500 °C) a coating thickness of 2-4 μm can be realized.
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating GLT-1
Overall Length 3.1496 80.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2360 5.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 1.00MM
Thread Type METRIC
Flute Direction RIGHT
Thread Size M6
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Bottoming
Dimension Standard DIN/DIN
Tap Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Square 0.1910
Tap Chamfer 1.5P-2.0P
