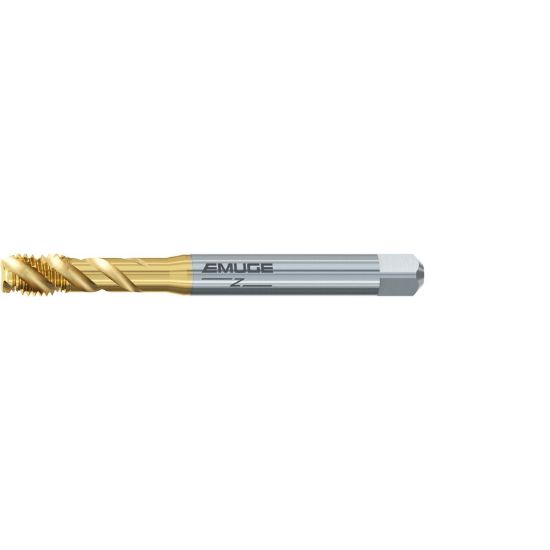

EMUGE B0513700.0040 Tap Bottoming M4-0.70MM 6H Metric DIN/DIN HSSE TiN

ISO: B0513700.0040

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0513700.0040
Delivery date: 3-5 days
$53.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Coating TiN
Shipping State Massachusetts
Application Cut Tapping, Bottom Tapping, Tapping
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size M4
Machine Side Connection Type Tap Collet
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 1.5P-2.0P
Dimension Standard DIN/DIN
Tool Material Steel
Thread Pitch 0.70MM
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Thread Type Metric
Overall Len 2.4803 63.00MM
Drill Range 0.1287 3.27MM - 0.1358 3.45MM
Tap Square 0.1520
Shank/Pilot Dia 0.1770 4.50MM - #16
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Medical Yes
Aerospace Yes
Job Shop Yes
