  • EMUGE B050C400.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE GLT-1

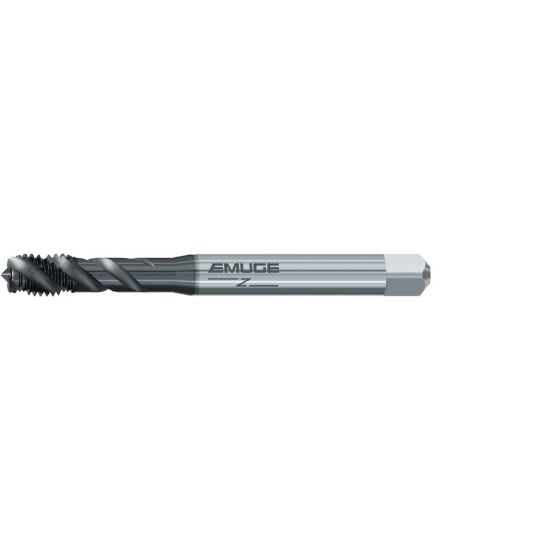

Picture of EMUGE B050C400.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE GLT-1

EMUGE B050C400.0060 Tap Mod Bottom M6-1.00MM 6H Metric DIN/DIN HSSE GLT-1

ISO: B050C400.0060

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB050C400.0060
Delivery date: 3-5 days
$61.10

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Coating GLT-1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size M6
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Drill Range 0.1953 4.96MM - 0.2055 5.22MM
Tap Type Mod Bottom
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Square 0.1910
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Overall Len 3.1496 80.00MM
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Aerospace Yes
Medical Yes
Automotive Yes
Job Shop Yes
