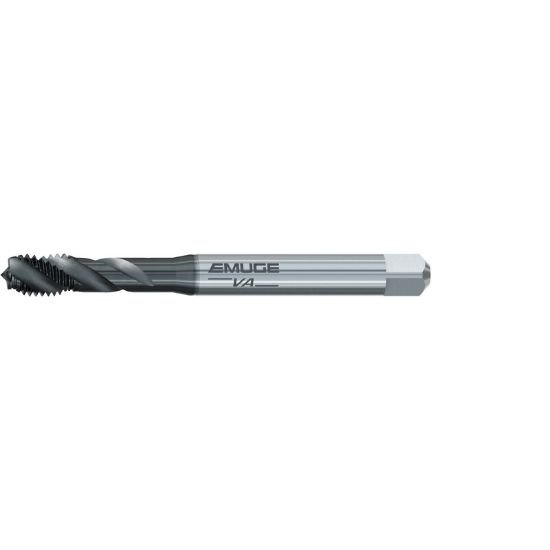

Picture of Emuge B050C300.0035 Tap Mod Bottom M3.5-0.60mm 6H Metric DIN/DIn HSSE

Emuge B050C300.0035 Tap Mod Bottom M3.5-0.60mm 6H Metric DIN/DIn HSSE

Part Number: EMUB050C300.0035 ISO: B050C300.0035

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1159791
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
EMUGE B050C300.0035 M3.5x0.60MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE Uncoated 6H Metric Steel
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSSE
Machine Side Connection Type Tap Collet
Cut Rating Stainless Steel, <42HRC Steel
Overall Length 2.2047 56.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Type Of Tool Tap
Length Type STANDARD
Performance Rating High Performance
Thread Pitch 0.60MM
Thread Type METRIC
Thread Size M3.5
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tap Drill Range 0.1134 2.88MM - 0.1193 3.03MM
Tap Square 0.1100
Tap Chamfer 2.0P-3.0P
