  • EMUGE B0503500.0971 Tap M6-1.00MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P HSS HSSE

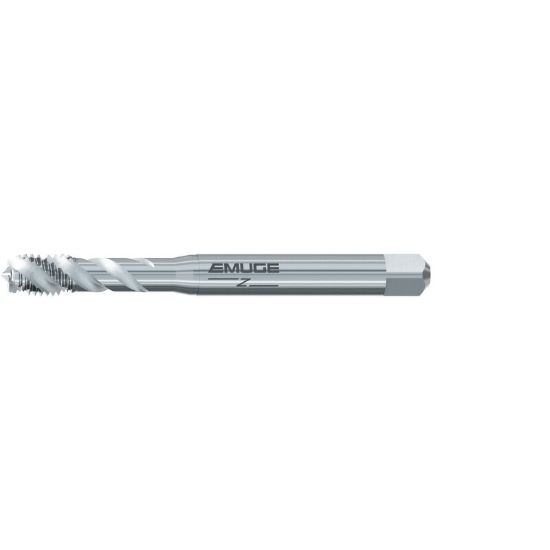

Picture of EMUGE B0503500.0971 Tap M6-1.00MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P HSS HSSE

EMUGE B0503500.0971 Tap M6-1.00MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P HSS HSSE

ISO: B0503500.0971

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0503500.0971
Delivery date: 3-5 days
$62.13

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Blind Hole Tapping, Mod Bottom Tapping, STI Thread Insert Tapping, Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Square 0.2380
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M6
Shank/Pilot Dia 0.3140 7.98MM
Tool Material Steel
Tap Style STI
Dimension Standard DIN/DIN
Drill Range 0.2480 6.30MM
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit 6H
Thread Type STI-M
Overall Len 3.5433 90.00MM
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Job Shop Yes
