  • EMUGE B0503500.0970 Tap M5-0.80MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P Cobalt HSSE

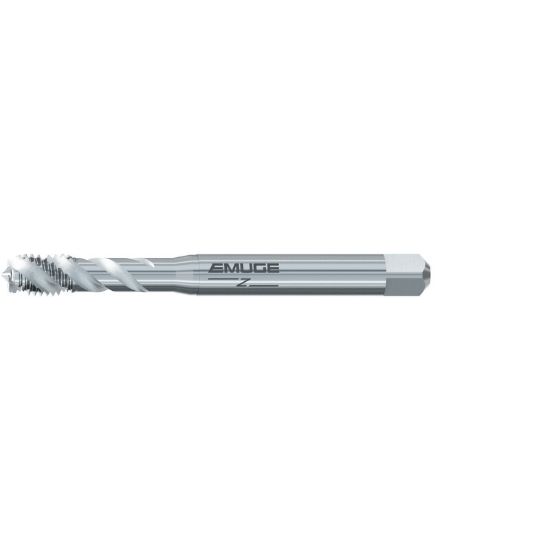

Picture of EMUGE B0503500.0970 Tap M5-0.80MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P Cobalt HSSE

EMUGE B0503500.0970 Tap M5-0.80MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P Cobalt HSSE

ISO: B0503500.0970

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0503500.0970
Delivery date: 3-5 days
$58.95

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Blind Hole Tapping, Mod Bottom Tapping, Tapping
Made In USA No
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Dimension Standard DIN/DIN
Tool Material Steel
Tap Style STI
Flute Direction R - Right
Length Type Standard
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.1496 80.00MM
Tap Square 0.1520
Thread Pitch 0.80MM
Drill Range 0.2047 5.20MM
Thread Limit 6H
Thread Type STI-M
Shank/Pilot Dia 0.2360 5.99MM
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M5
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
