  • EMUGE B0503500.0968 Tap M4-0.70MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P HSS HSSE

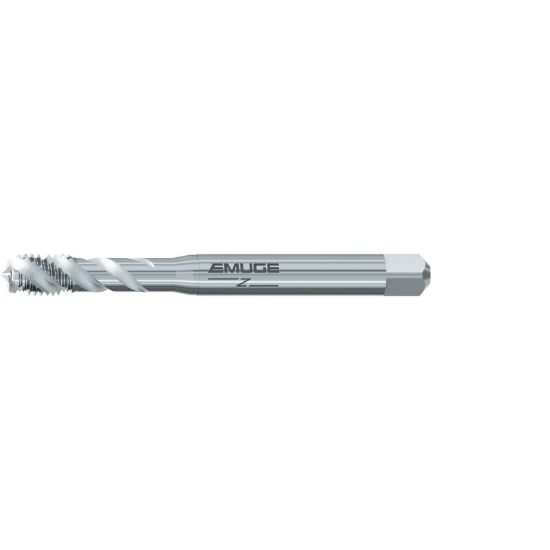

Picture of EMUGE B0503500.0968 Tap M4-0.70MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P HSS HSSE

EMUGE B0503500.0968 Tap M4-0.70MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P HSS HSSE

ISO: B0503500.0968

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0503500.0968
Delivery date: 3-5 days
$62.13

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, STI Thread Insert Tapping, Tapping
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.7560 70.00MM
Drill Range 0.1654 4.20MM
Tap Square 0.1520
Thread Size M4
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2360 5.99MM
Tap Type Mod Bottom
Dimension Standard DIN/DIN
Tool Material Steel
Tap Style STI
Thread Limit 6H
Thread Type STI-M
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Pitch 0.70MM
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
