  • EMUGE B0503500.0965 Tap M2.5-0.45MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P Carbide HSSE

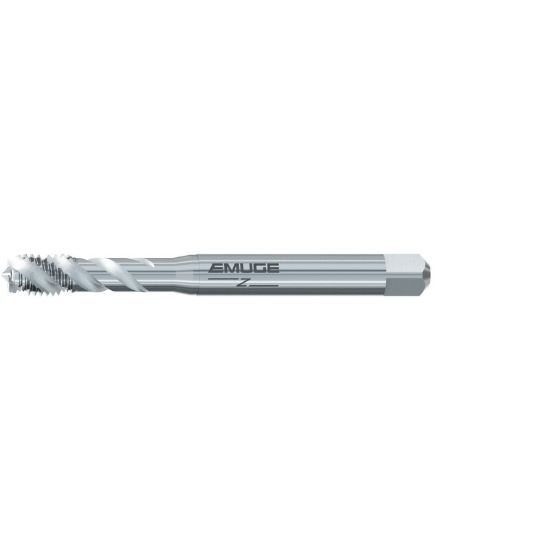

Picture of EMUGE B0503500.0965 Tap M2.5-0.45MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P Carbide HSSE

EMUGE B0503500.0965 Tap M2.5-0.45MM Mod Bottom STI-M DIN/DIN 2.0P-3.0P Carbide HSSE

ISO: B0503500.0965

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0503500.0965
Delivery date: 3-5 days
$68.87

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application STI Thread Insert Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Tool Material Steel
Tap Square 0.1100
Tap Style STI
Thread Size M2.5
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Limit 6H
Thread Type STI-M
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Shank/Pilot Dia 0.1370 3.48MM
Overall Len 2.2047 56.00MM
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Pitch 0.45MM
Flute Direction R - Right
Drill Range 0.1024 2.60MM
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
