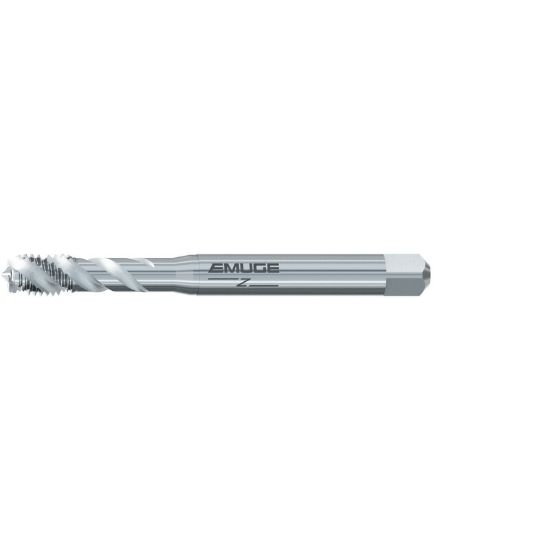

EMUGE B0503500.0050 Tap Mod Bottom M5-0.80MM 6H Metric DIN/DIN HSSE

ISO: B0503500.0050

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0503500.0050
Delivery date: 3-5 days
$49.15

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Drill Range 0.1642 4.17MM - 0.1724 4.38MM
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Flute Direction R - Right
Length Type Standard
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Thread Size M5
Dimension Standard DIN/DIN
Thread Pitch 0.80MM
Overall Len 2.7560 70.00MM
Tap Square 0.1520
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSSE
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Automotive Yes
