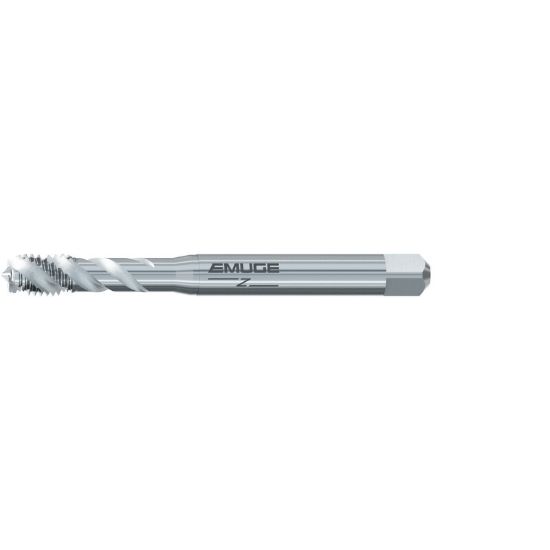

EMUGE B0503500.0030 Tap Mod Bottom M3-0.50MM 6H Metric DIN/DIN HSSE

ISO: B0503500.0030

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMUB0503500.0030
Delivery date: 3-5 days
$46.98

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Tap Square 0.1100
Length Type Standard
Thread Size M3
Shank/Pilot Dia 0.1370 3.48MM
Dimension Standard DIN/DIN
Overall Len 2.2047 56.00MM
Thread Limit 6H
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Tap Chamfer 2.0P-3.0P
Thread Pitch 0.50MM
Machine Side Connection Type Tap Collet
Thread Type Metric
Cut Rating <48HRC Steel, High Temp, Stainless Steel
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE
Industry-Specific Applications
Automotive Yes
Medical Yes
Aerospace Yes
Job Shop Yes
